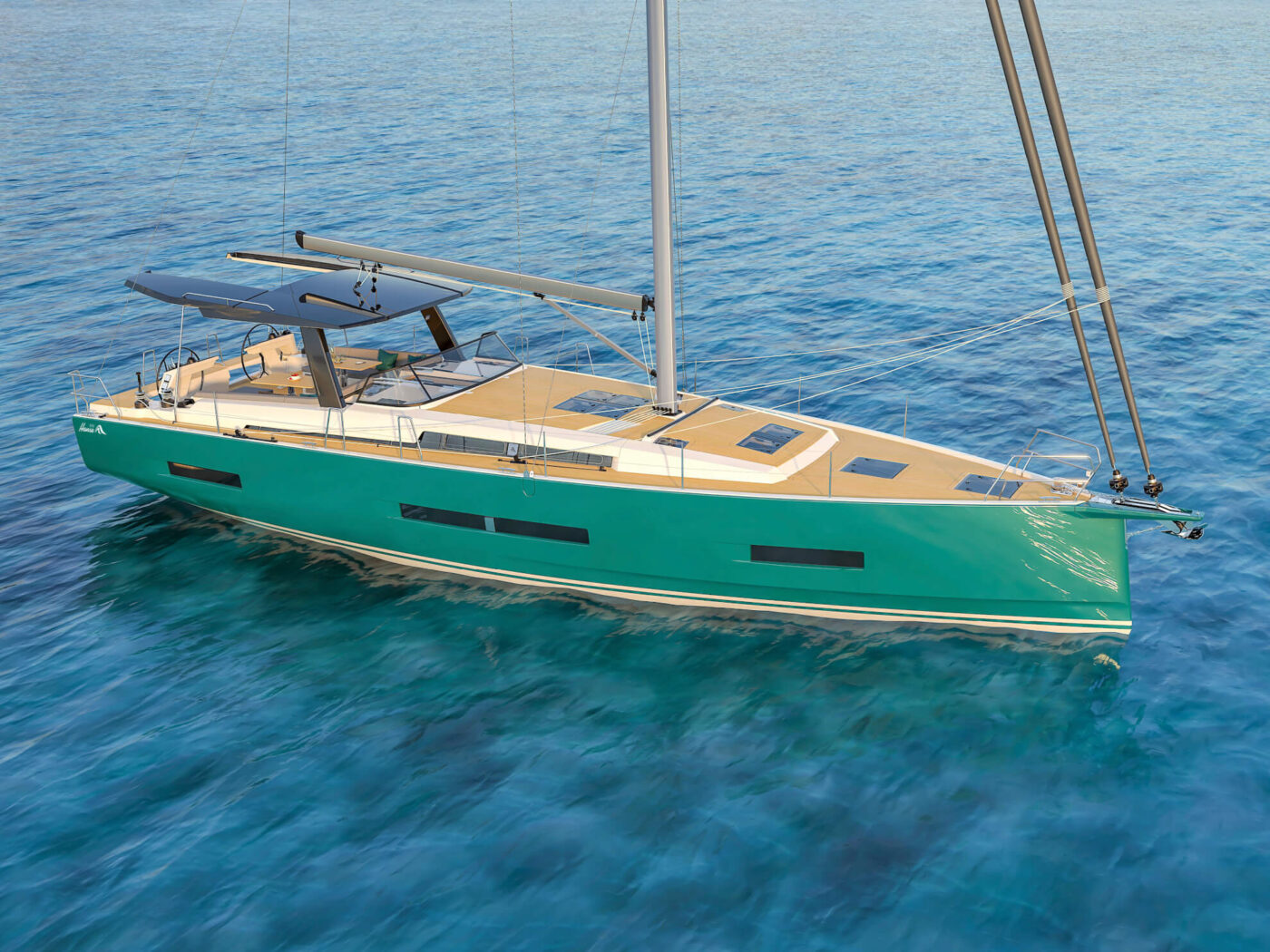

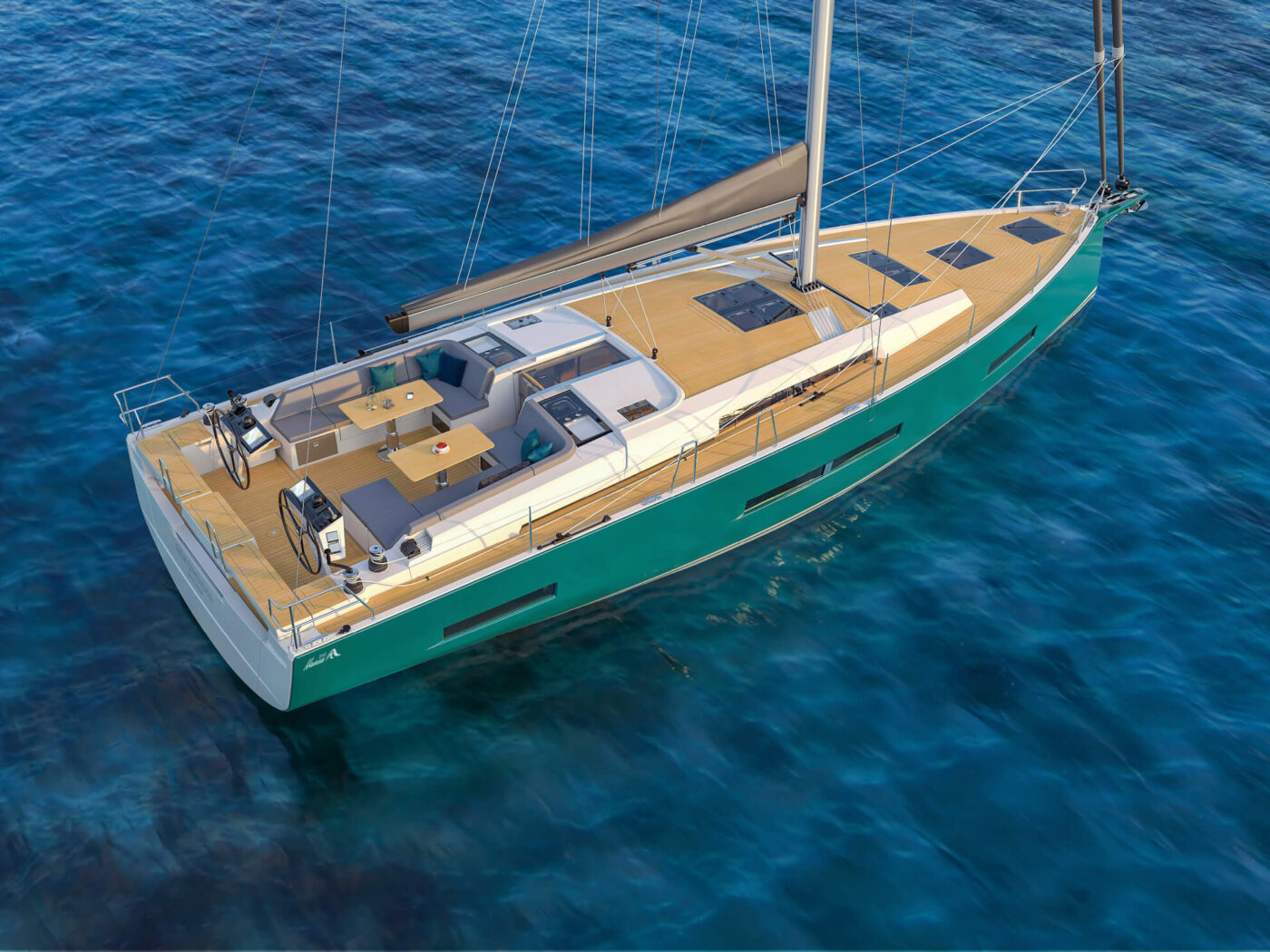

Bold. Brilliant. The new Hanse 510

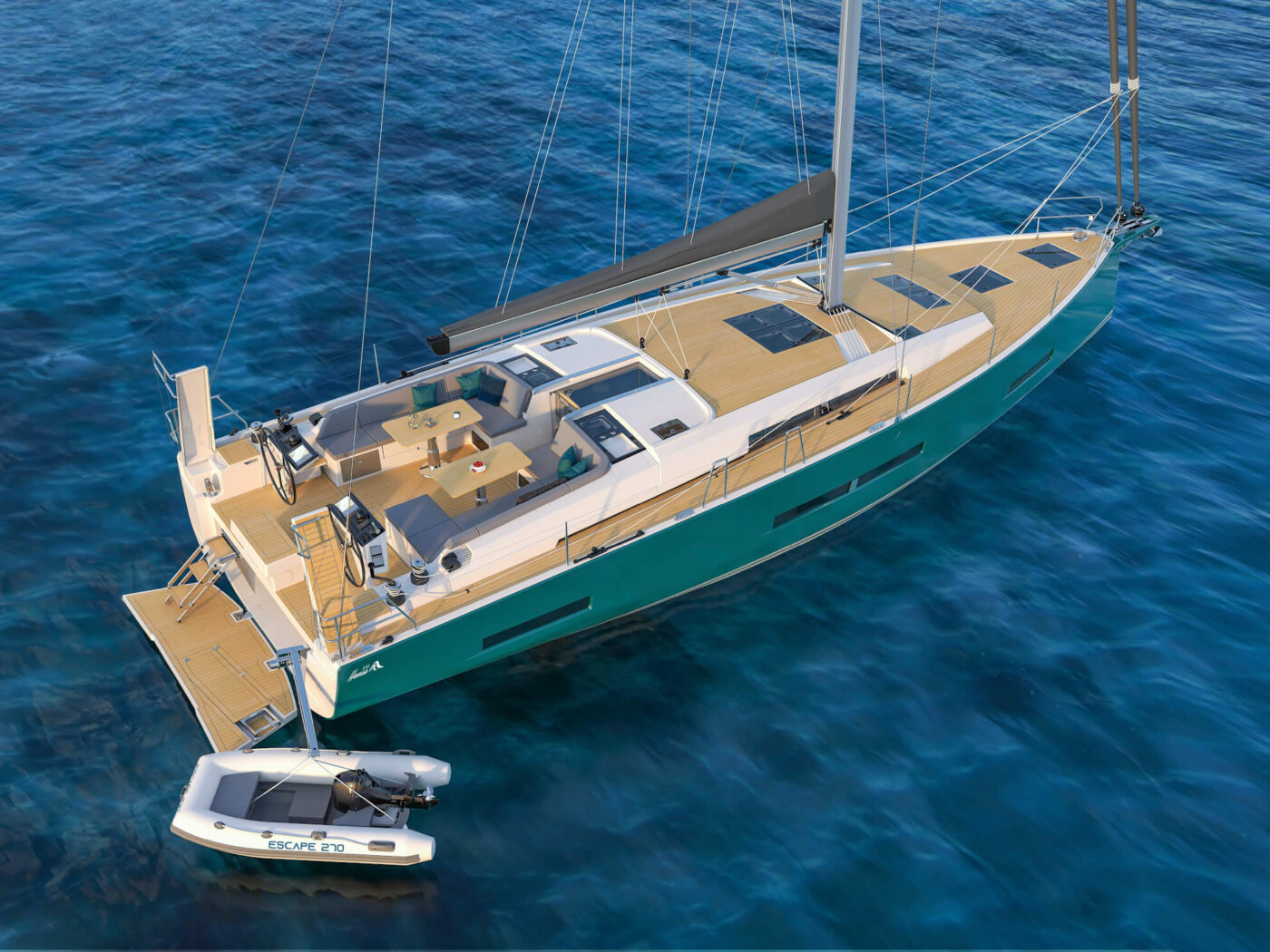

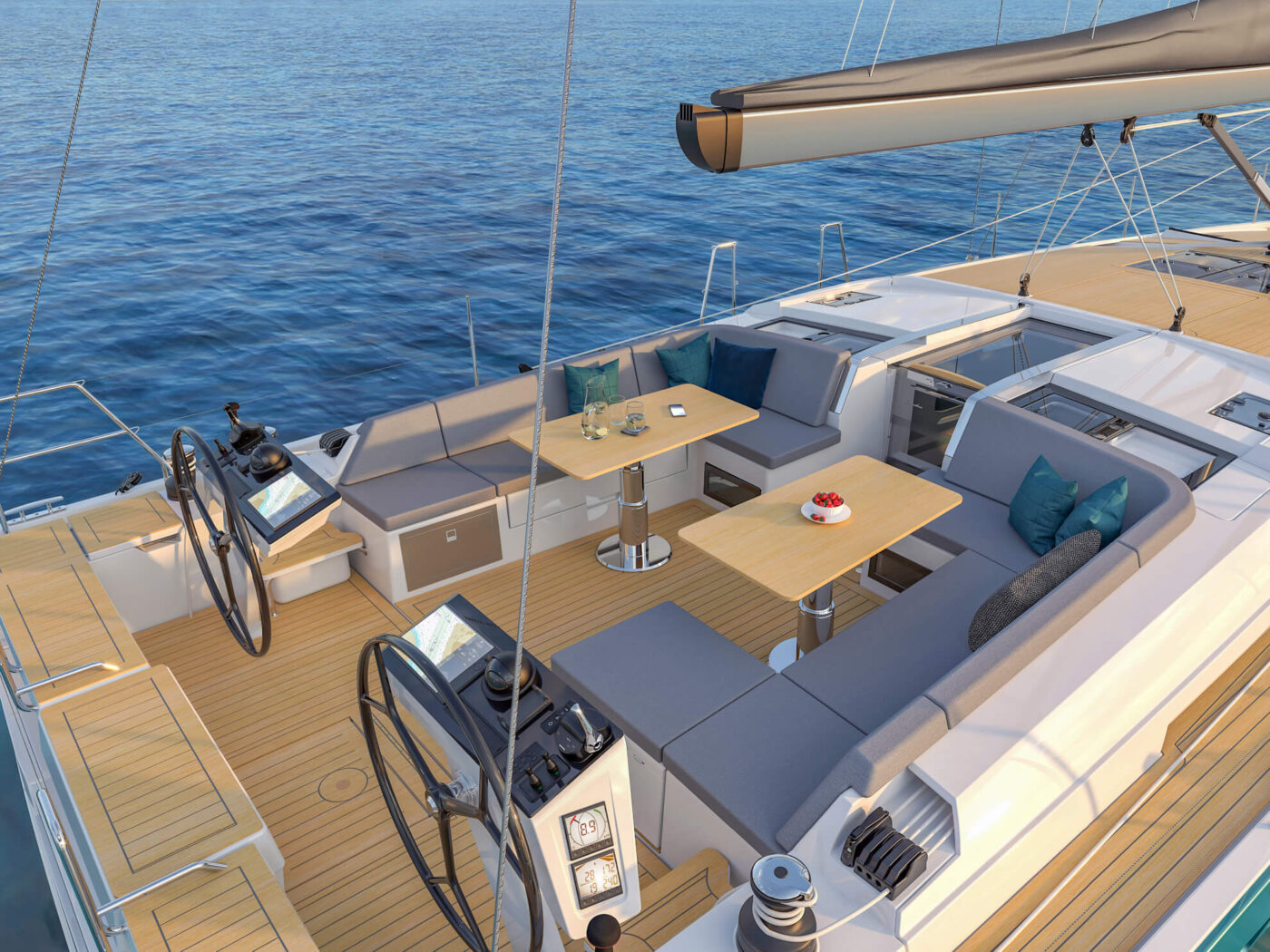

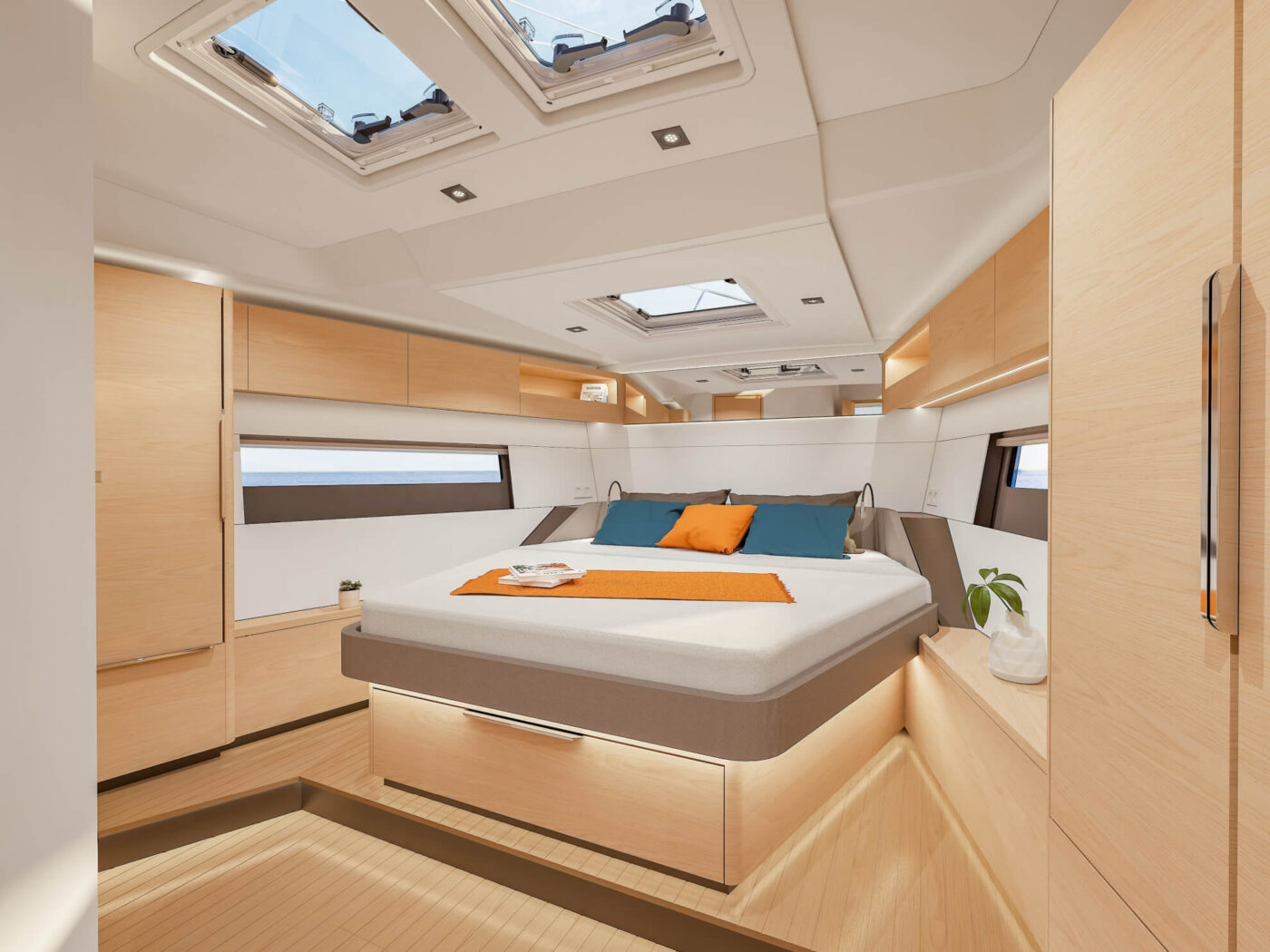

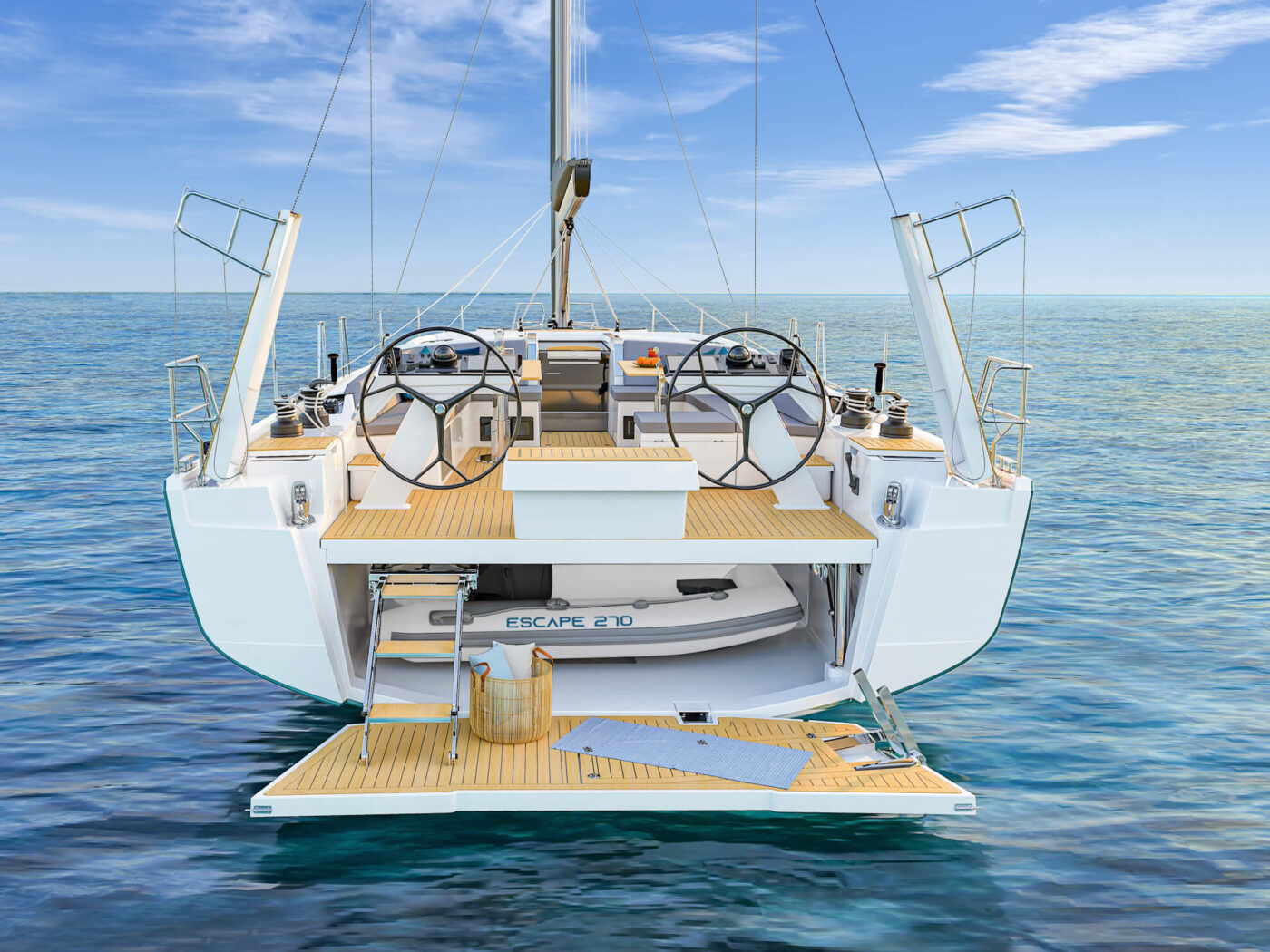

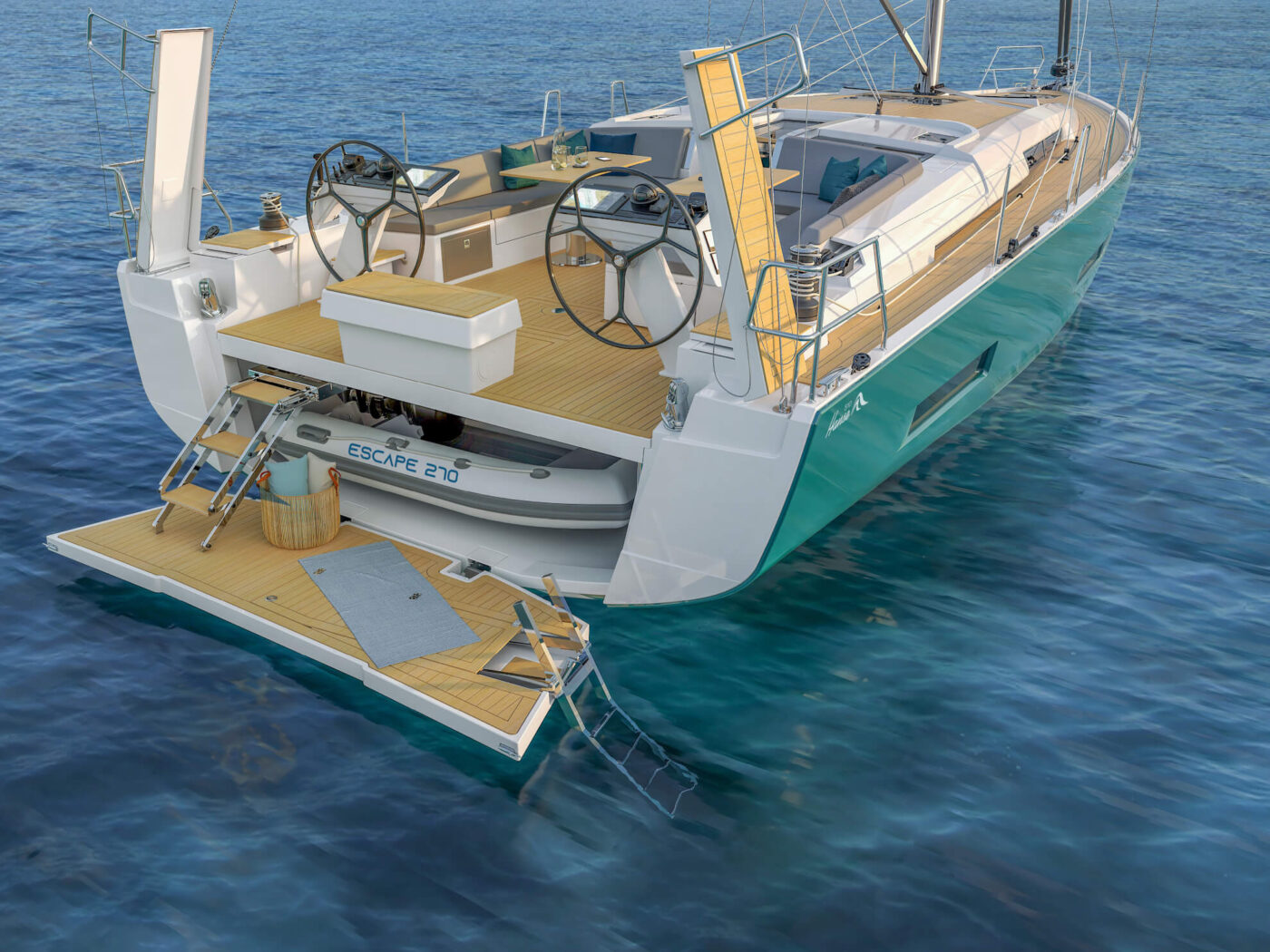

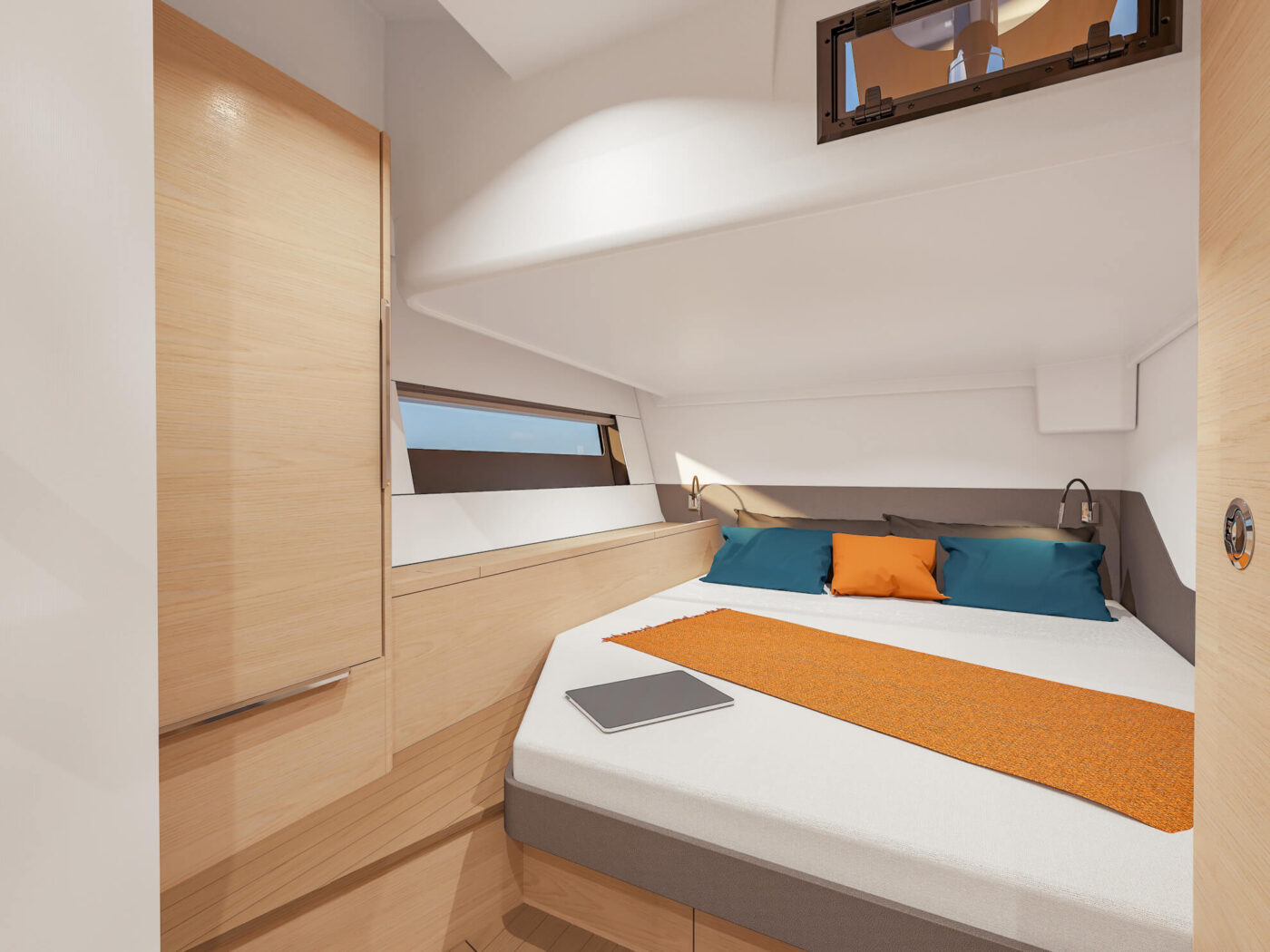

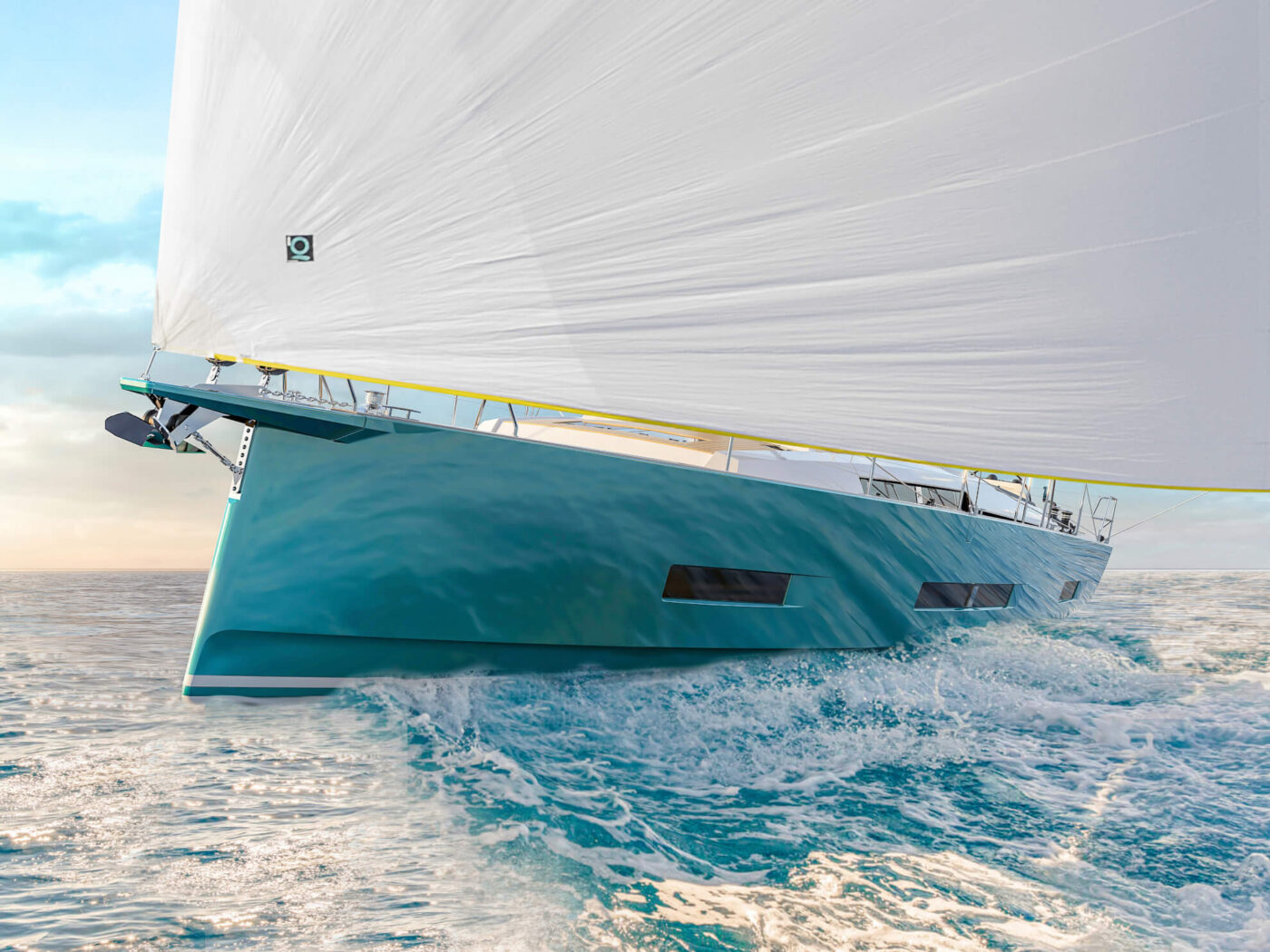

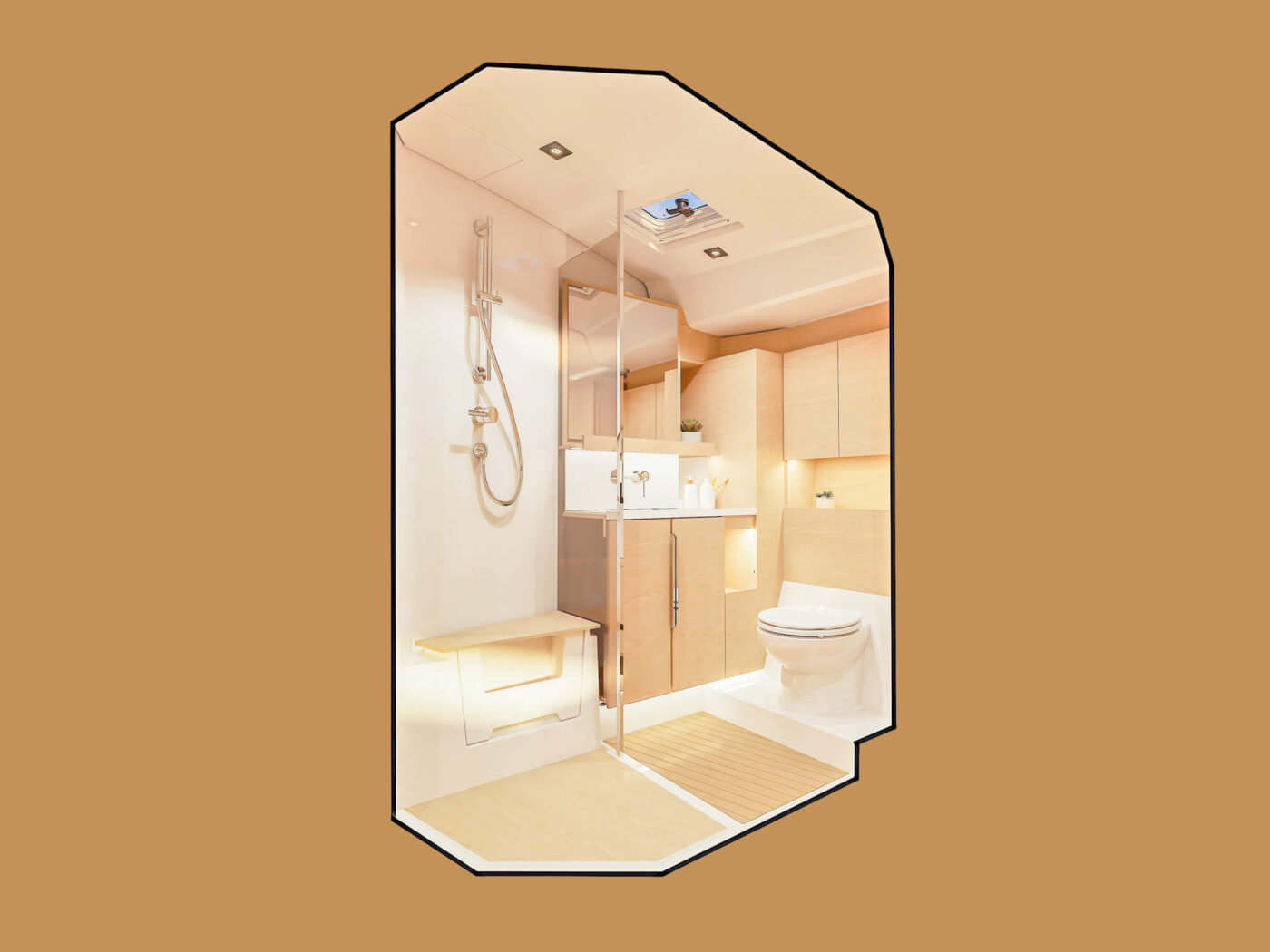

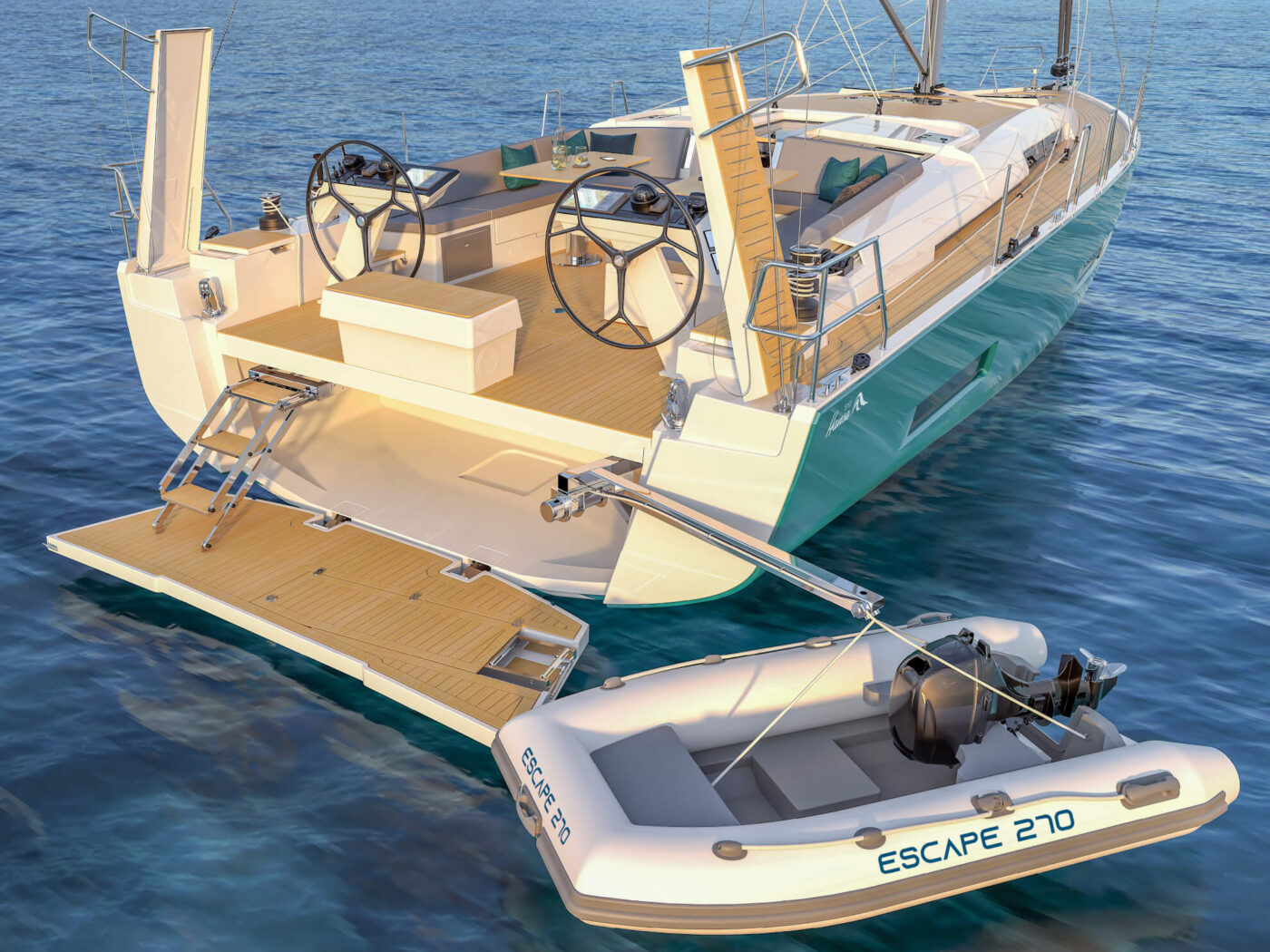

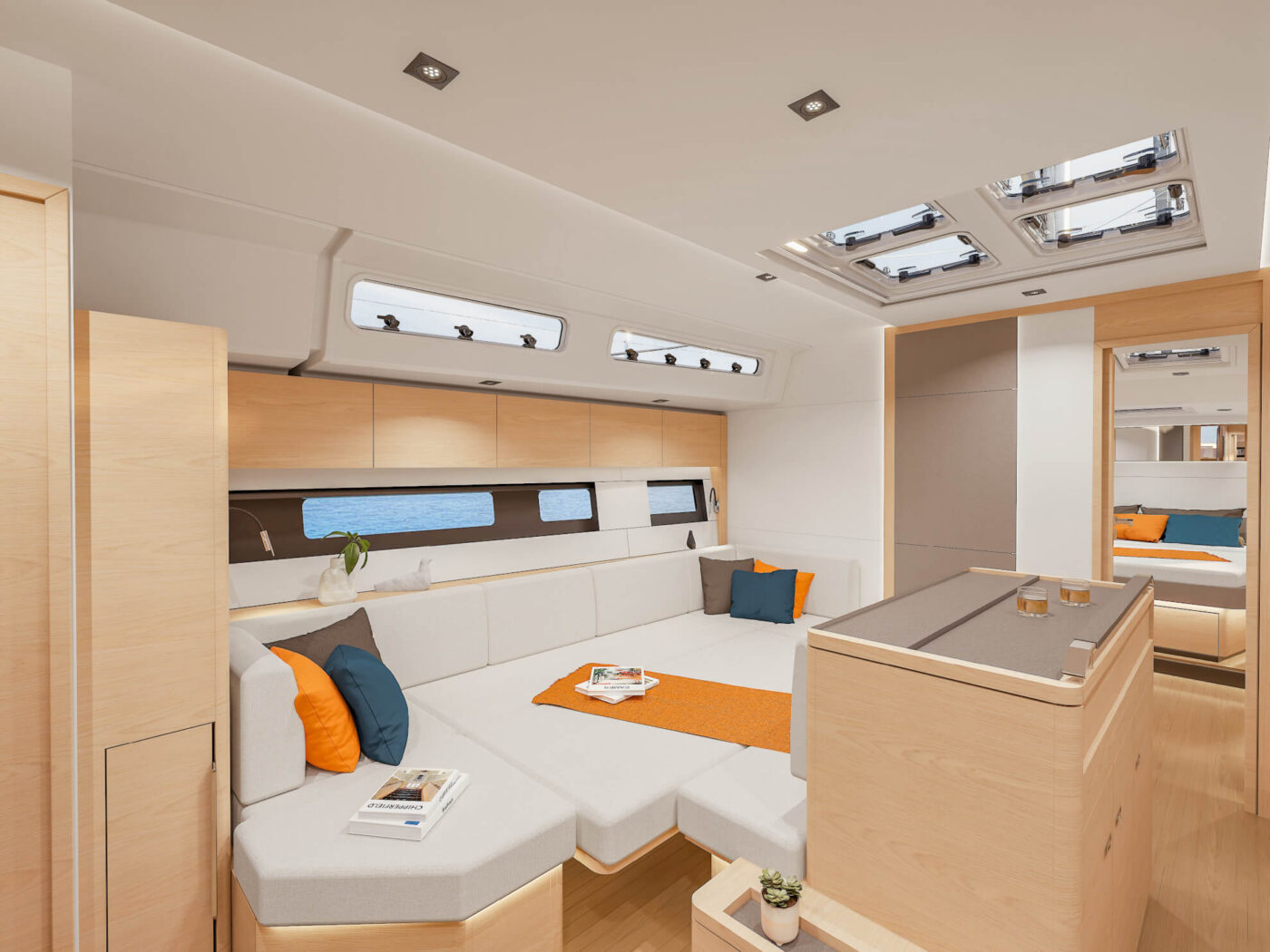

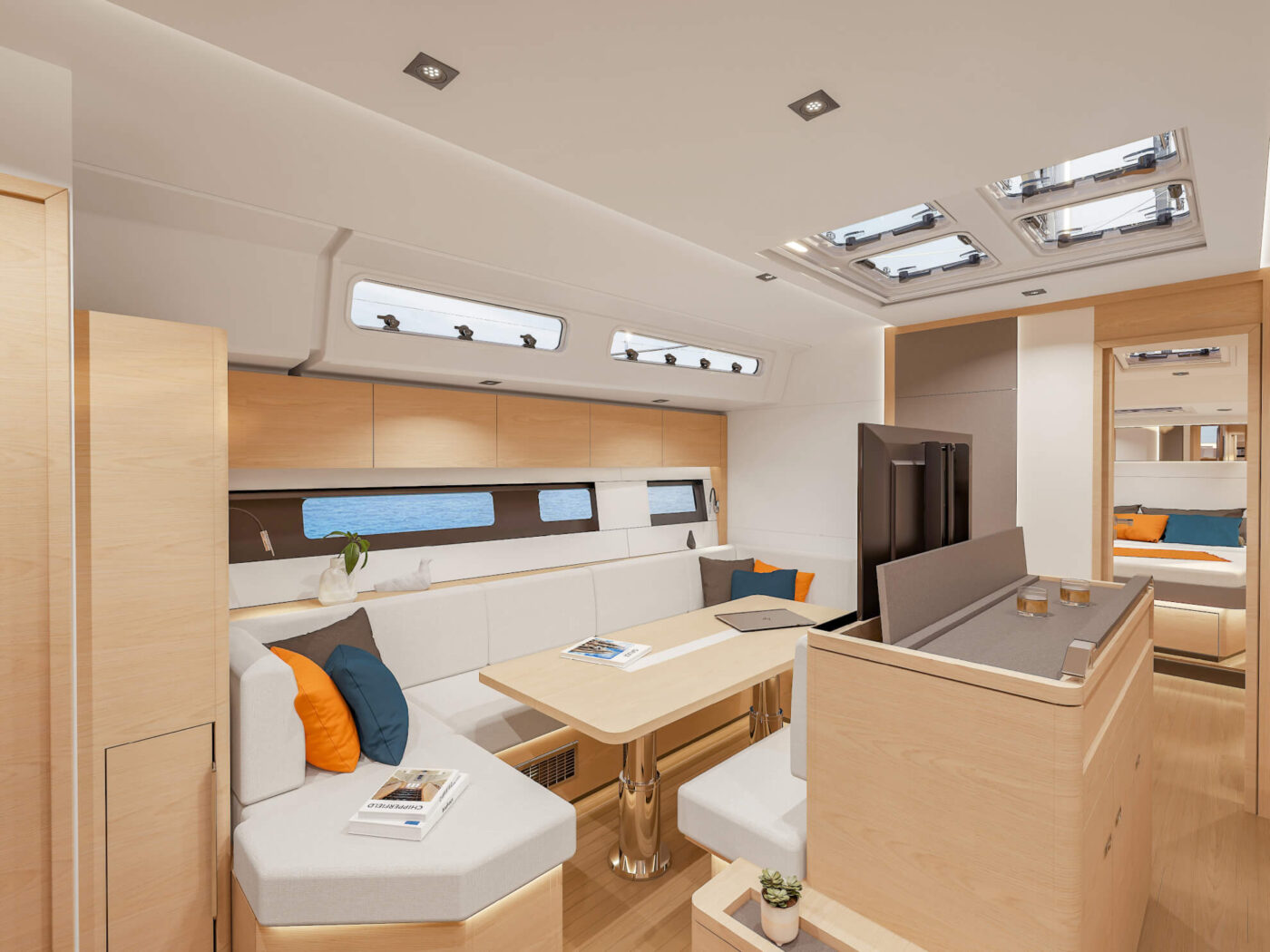

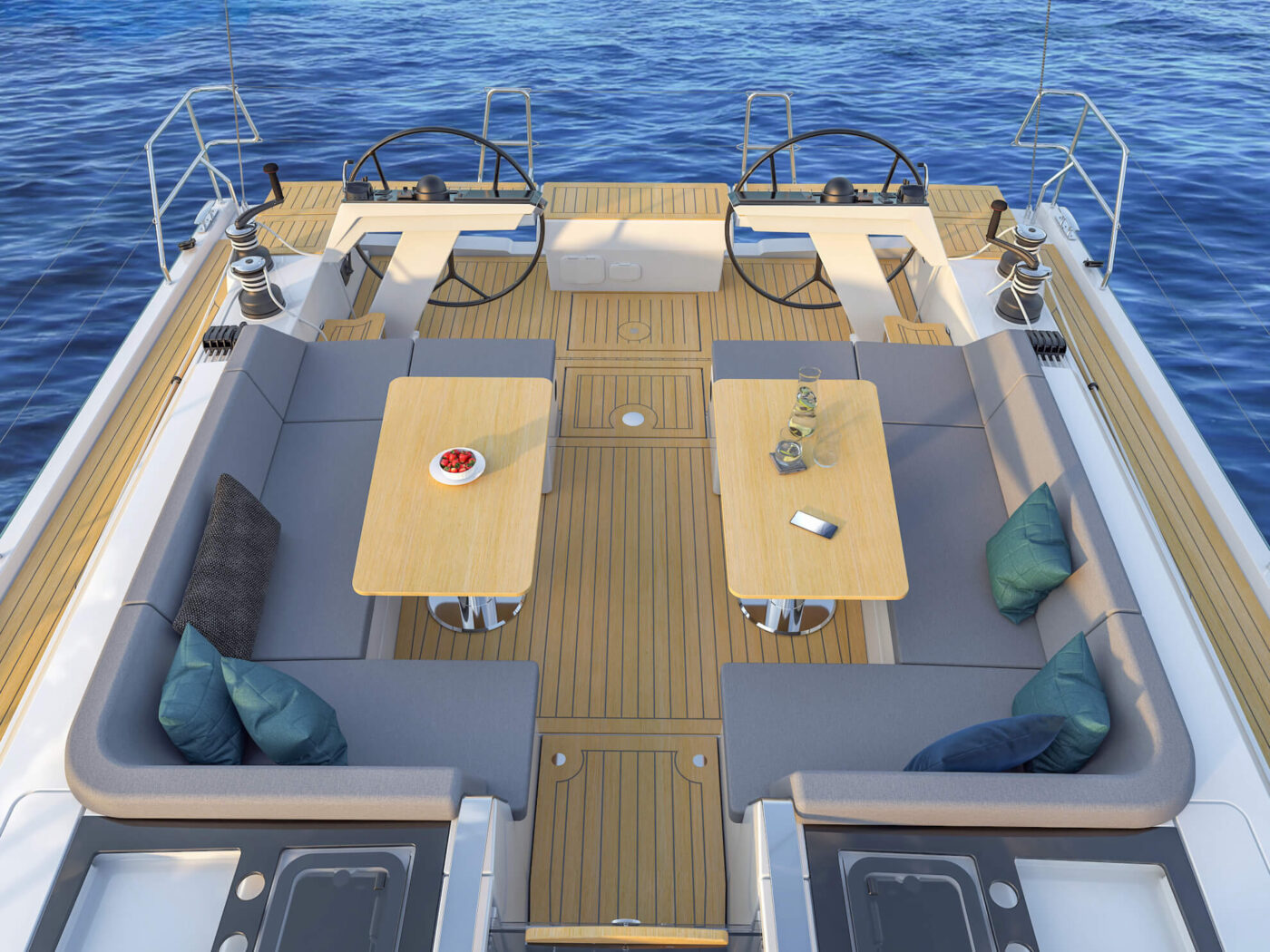

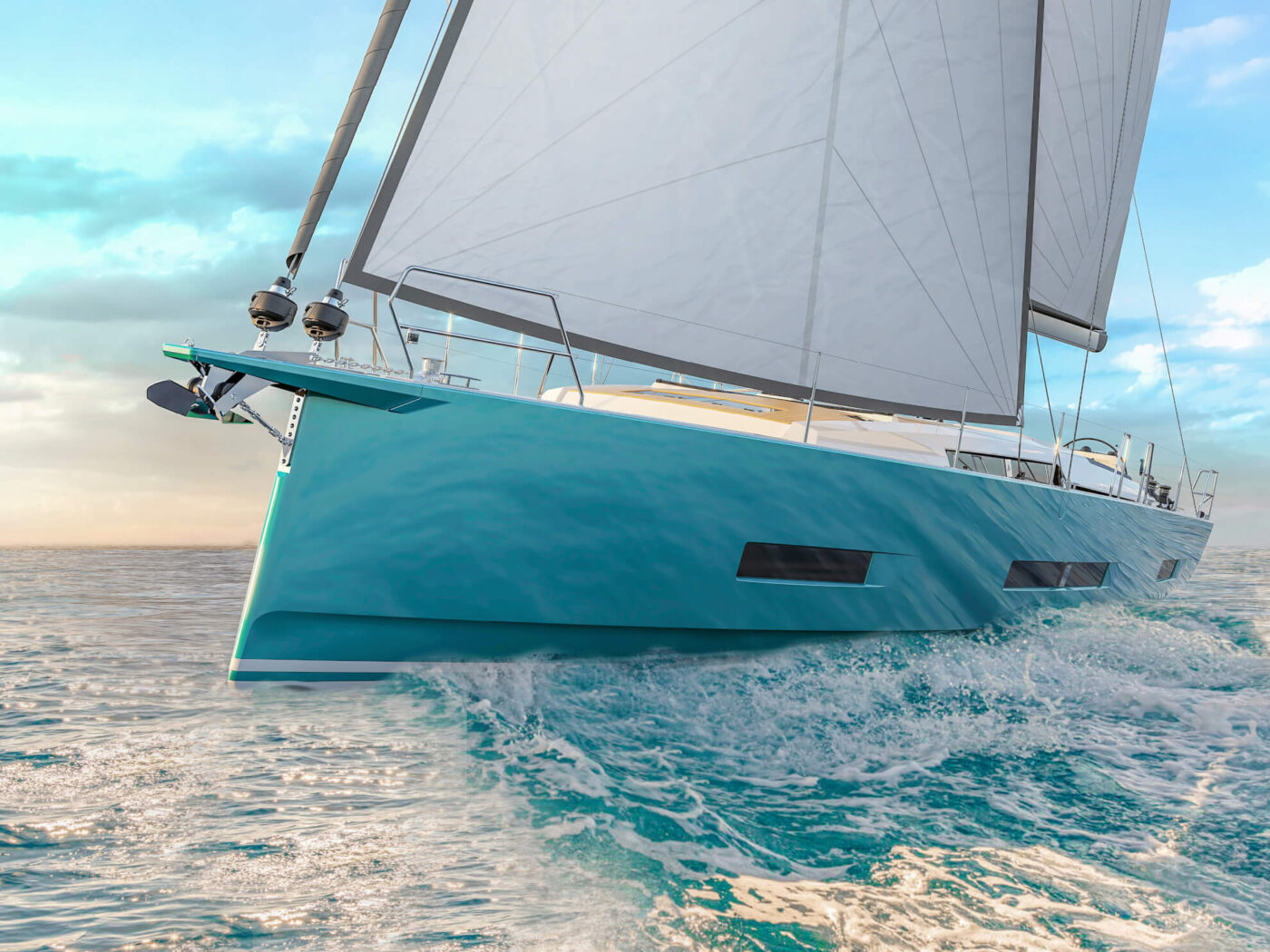

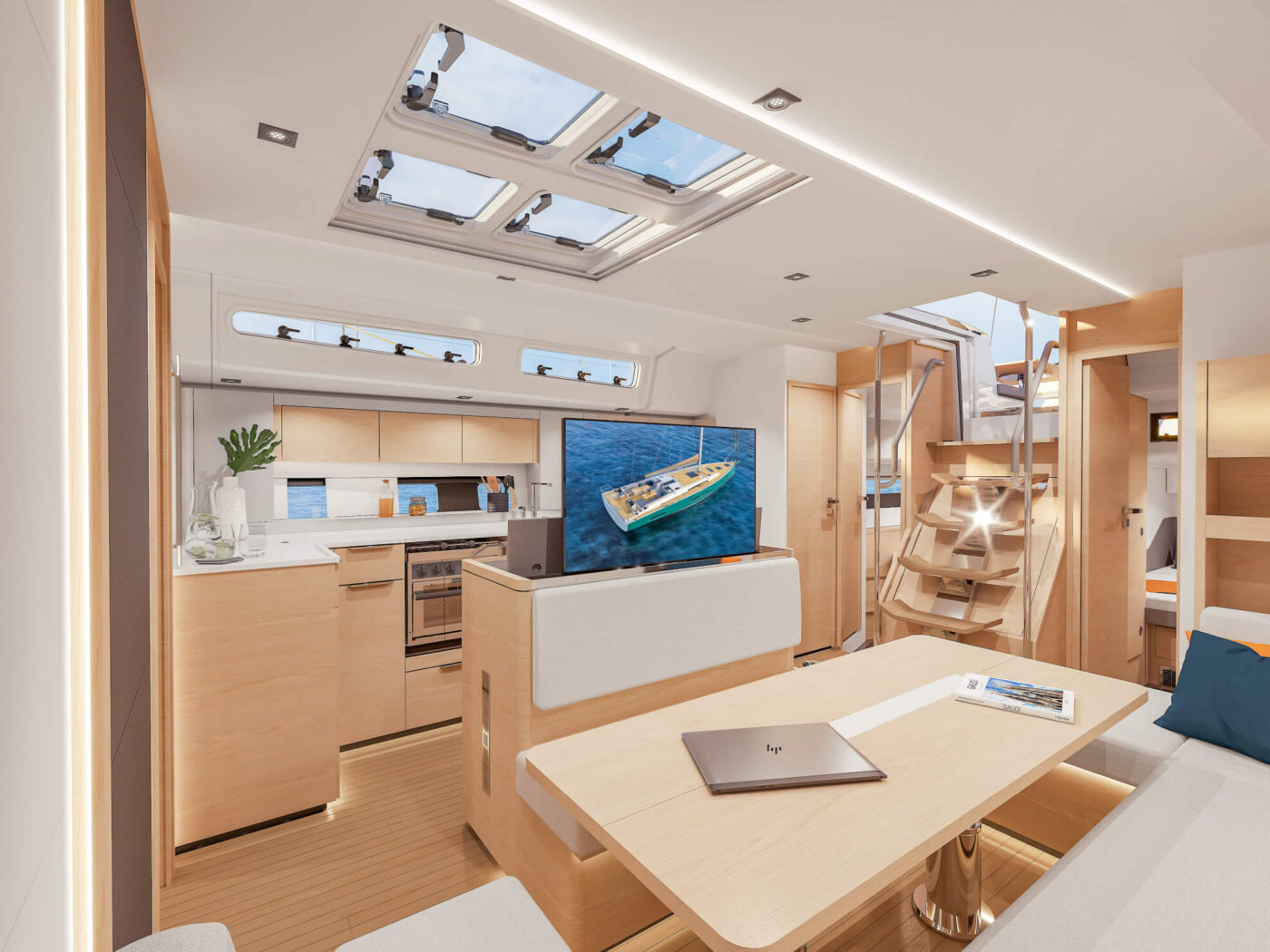

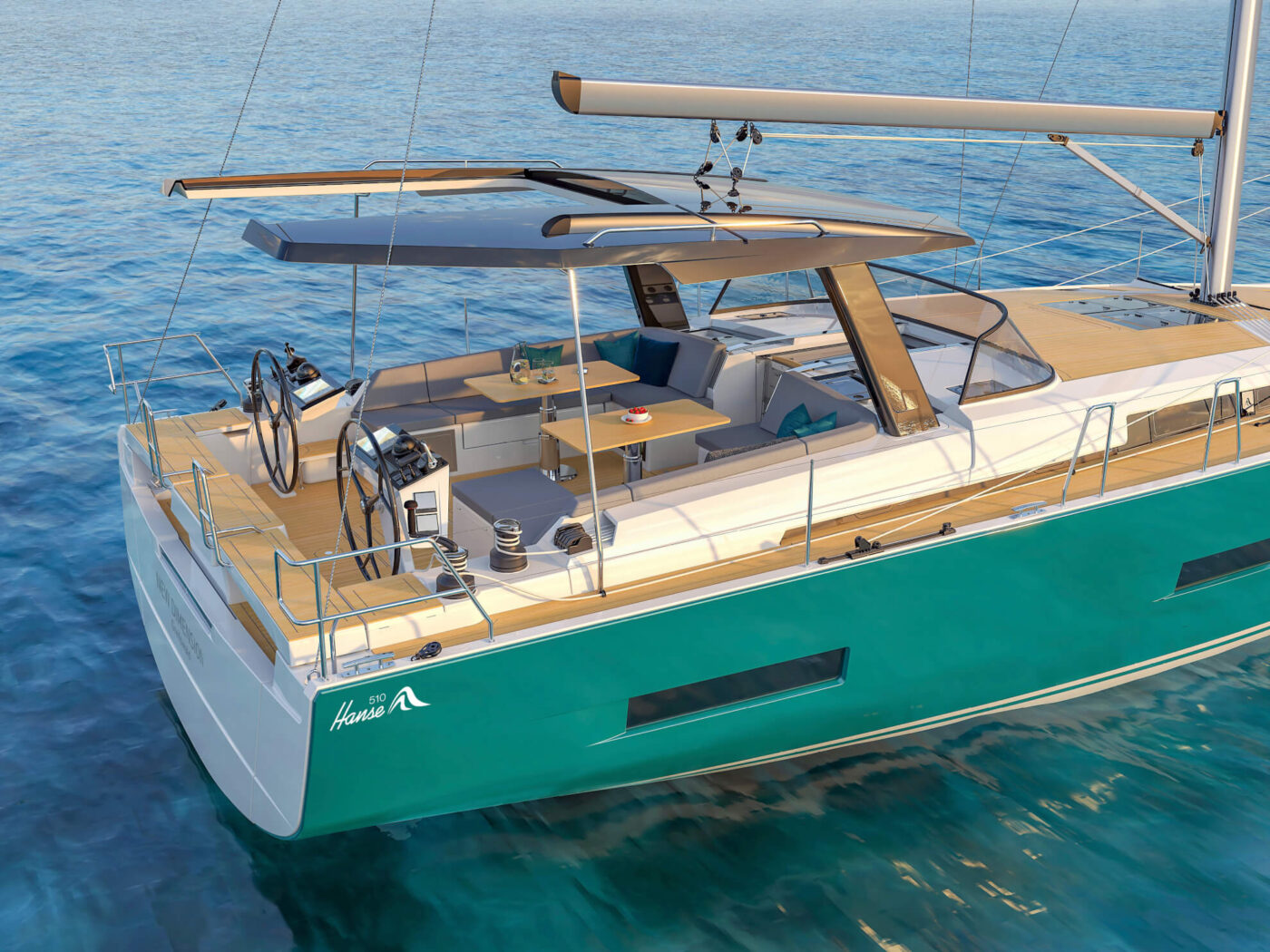

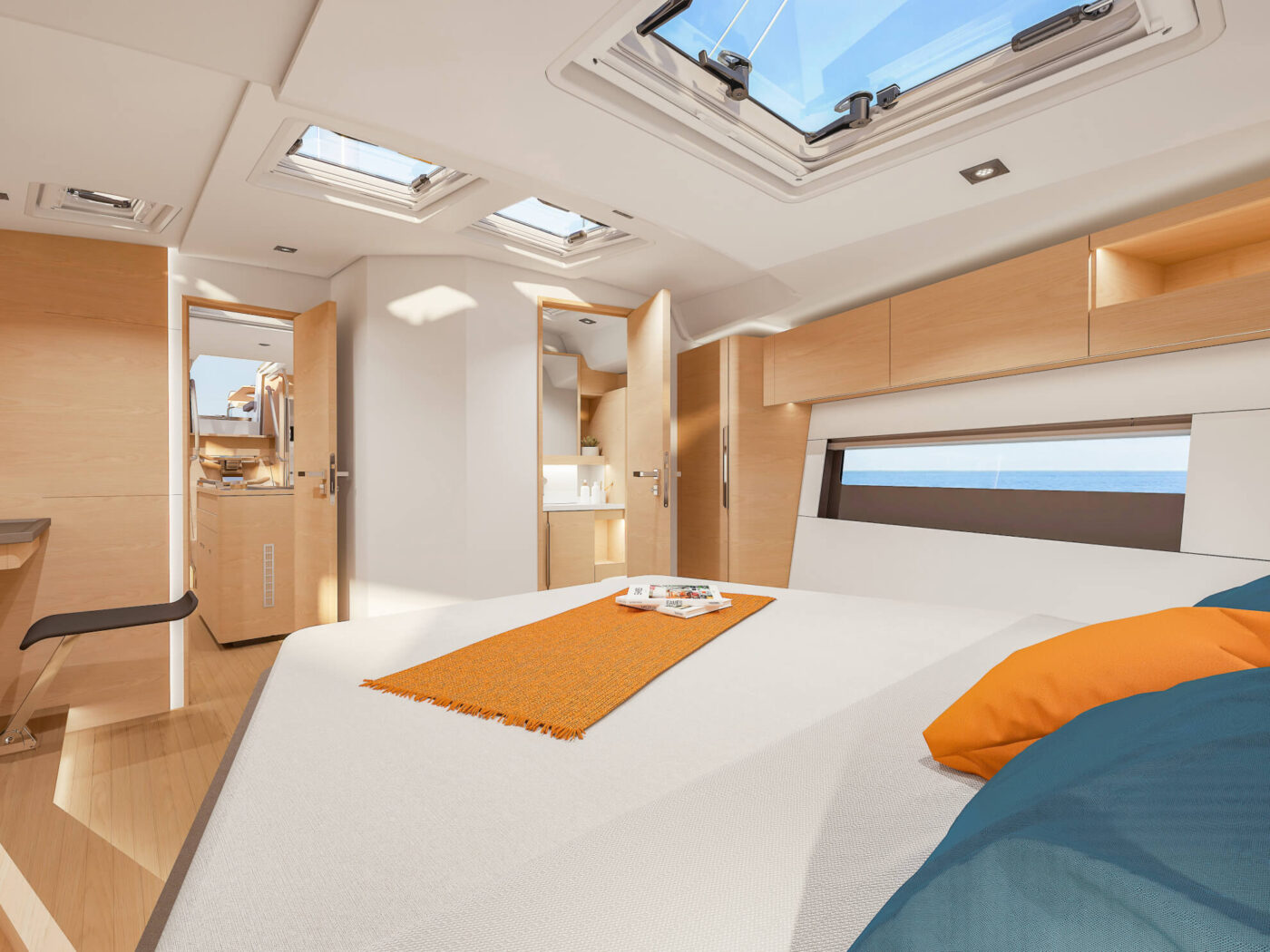

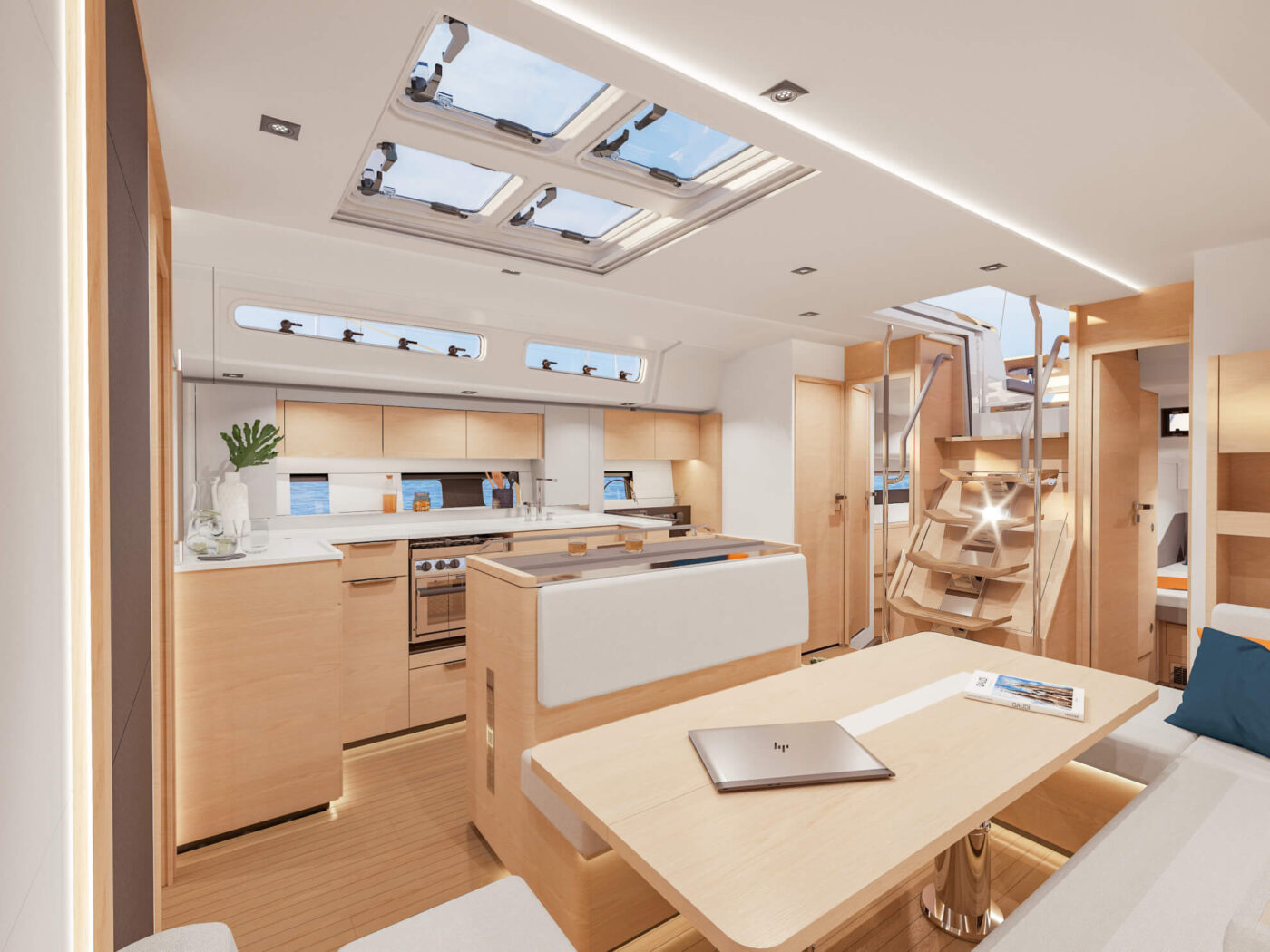

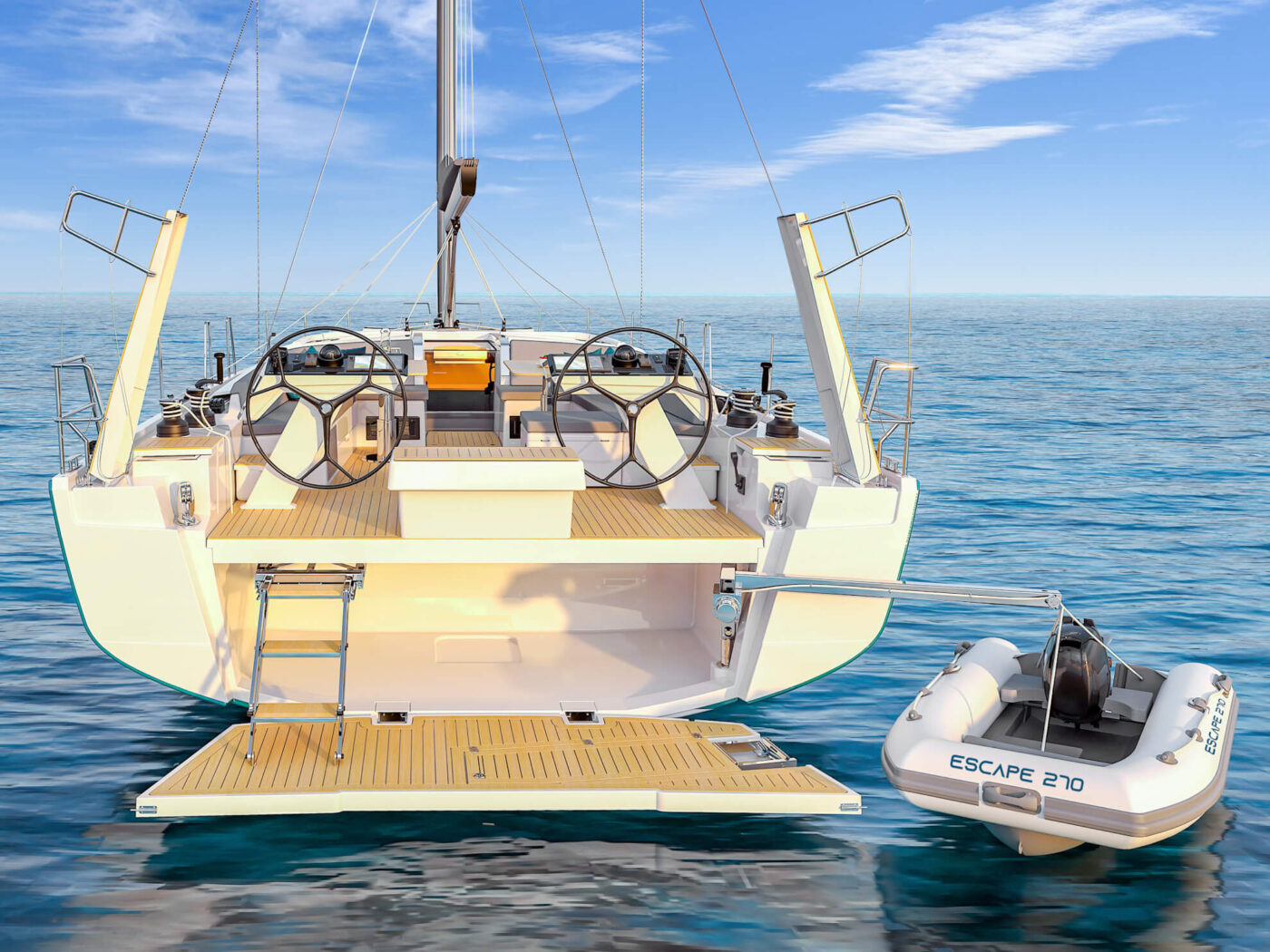

Easy Sailing and Fast Cruising in a new, spectacular look: The innovative hull shape and the perfectly placed chine edges ensure ideal water drainage – a guarantee for unrestricted performance and ease of sailing. In addition, the yacht offers the largest tender garage in its class – optionally with the newly developed Smart Tender system for convenient watering of your dinghy in just a few steps. The renowned design office Berret-Racoupeau has created completely new space dimensions on the 51-foot yacht. The spacious cockpit, unique in this class, is the perfect place to relax with friends and family. The modern design creates an enormous amount of space inside and offers plenty of room for socialising and privacy. Every area is a true feel-good space – the generous master cabin with ensuite bathroom and the comfortable crew cabin provide an exquisite sense of space with many smart & high-quality options. Make your Hanse 510 your own personal retreat.
LAYOUTS
SPECIFICATION
- CE Certificate
- A - 12
- Design
- Berret - Racoupeau
- Interior
- Berret - Racoupeau
- Fresh water
- 450 l 119 gal
- Fuel Tank
- 200 l 53 gal
- Engine Diesel standard
- 80 hp 59,6 kw
- Engine Diesel option
- 110 hp 82 kw
- Cabin Quantity
- 3
- Cabin Quantity Option
- 5
- LOA
- 15.97 m 52.5 ft
- Hull Length
- 15.25 m 50 ft
- LWL
- 14.4 m 47.3 ft
- Beam
- 4.91 m 16.1 ft
- Displacement
- 16.54 t 36.475 lbs
- Displacement L-keel, medium
- 16.54 t 36.475 lbs
- Draft L-keel, medium
- 2.43 m 7.12 ft
- Draft shallow Keel
- 1.98 m 6.6 ft
- Mast length above WL
- 23.55 m 77.3 ft
- Main sail standard
- 66 sqm 710 sq ft
- Self-tacking jib
- 53 sqm 570 sq ft
- Reacher
- 94 sqm 1.011 sq ft
- Genoa
- 62 sqm 667 sq ft
- Gennaker
- 189 sqm 2.034 sq ft
DOCUMENTS
- Hanse 510 Standard specification →
- Hanse 510 technical sail plan →
- Hanse 510 technical sail plan (Charter) →
- Hanse 510 Speed Guide - Genoa →
- Hanse 510 Speed Guide - Self Tacking Jib →
- Hanse 510 technical deck plan →
- Hanse 510 hull plan →
- Hanse 510 technical hull plan →
- Hanse 510 conventional sail plan →
