WINCKLER&CO.,LTD

C530

SEALINE

INFO

The Sealine C530 marks the impressive culmination of the Cruiser series. Here you can experience Sealine’s renowned convertible feeling in overwhelming dimensions. The expressive shape of the hull windows leaves no doubt about the origin of this dream yacht. The six-meter-long panoramic windows and the large sunroof allow natural light to flood into every corner of the saloon. Outside, the extra-large bathing platform and the grill lend exclusivity to life on board. Inside, comfort awaits you with thought lavished on even the smallest details – from the separate wine fridge to the rain shower in the owner’s bathroom. Across three double cabins and two bathrooms, you and your guests will enjoy the luxury of the C530. Aft there is a large storage space, which can be converted into a crew cabin.

LAYOUTS

SPECIFICATION

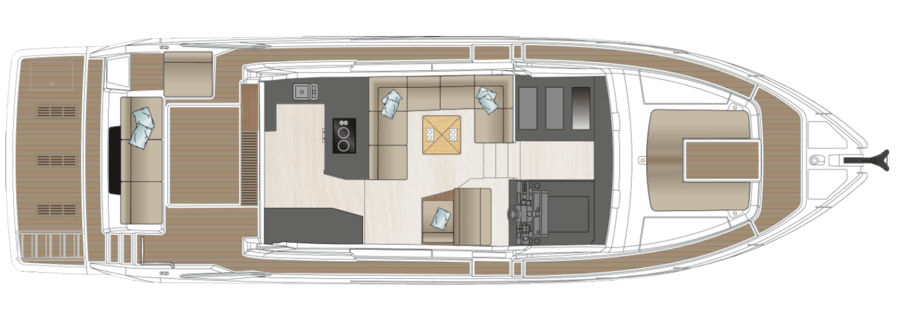

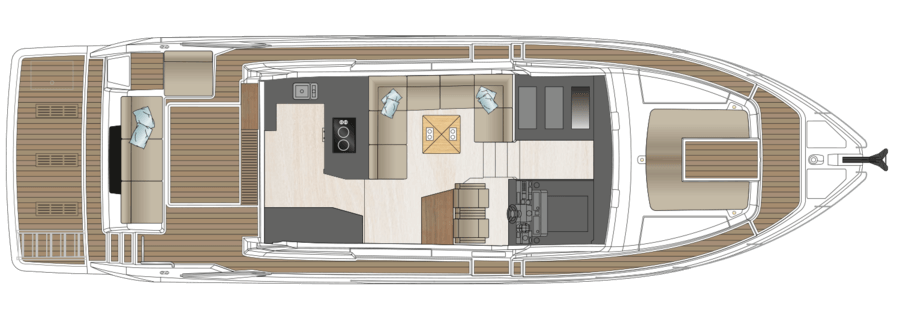

E1: Saloon with two sofas, convertible into U-shaped sofa. Pilot and copilot seats with sideboard behind. Galley with stowage, fridge with freezer compartment, ceramic electric stove – 2 burners, microwave with grill and sink with draining basin.

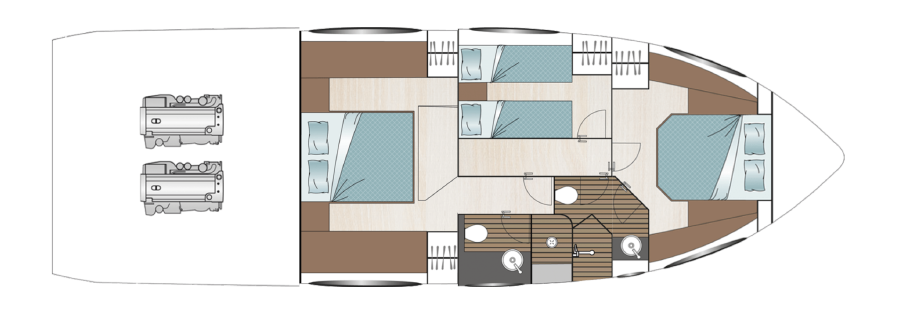

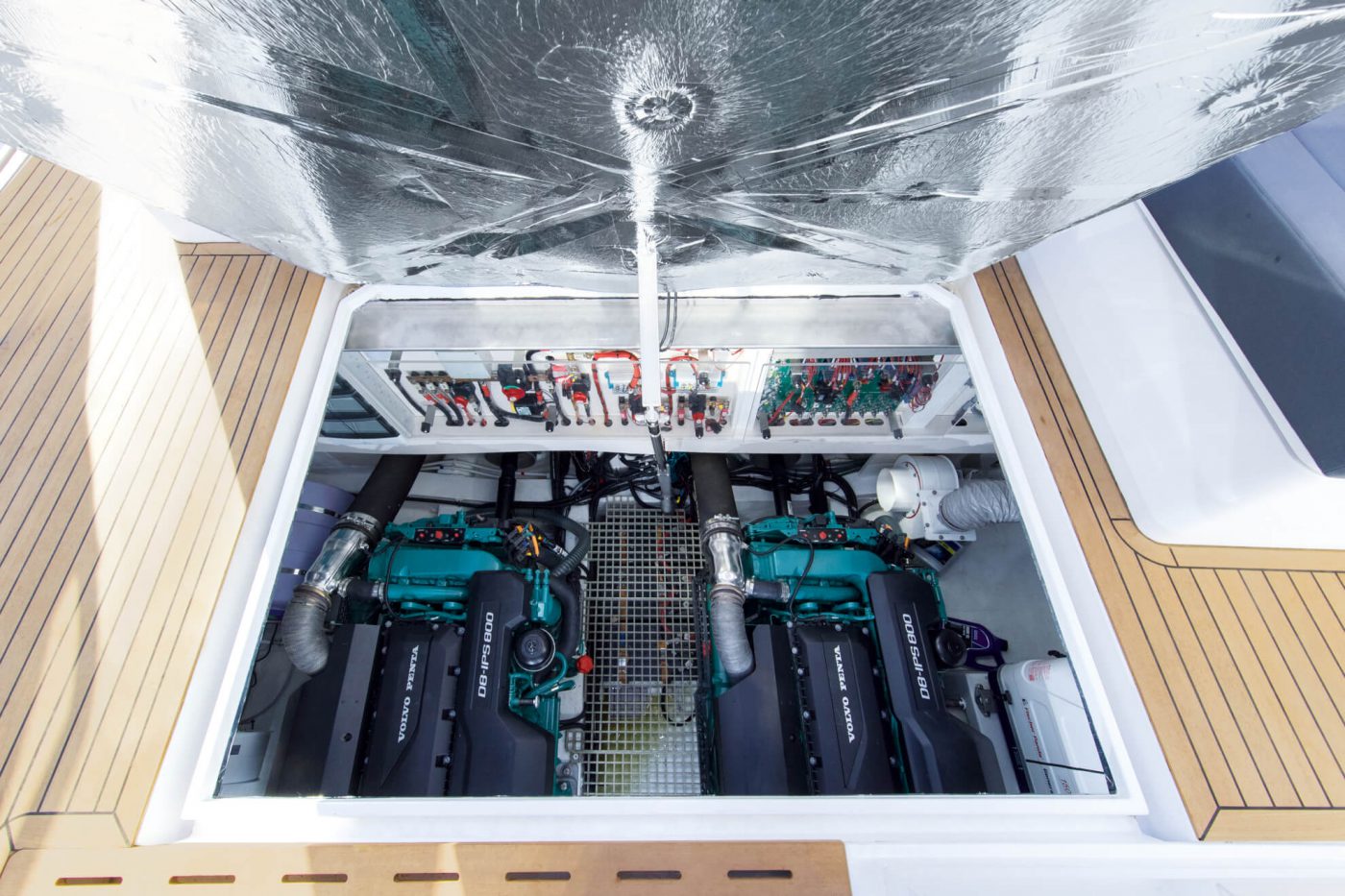

D1: Engine room with possibility to upgrade to the option D2 (storage room) or D3 (crew cabin)

C1: Master cabin with double berth and drawers underneath, wardrobes and sideboards with stowage, mirrors and two bedside tables. Fully equipped master cabin head, separate shower stall with raining and hand shower, comfort seat with wood cover.

B1: Guest cabin with twin berths, one drawer underneath, wardrobe and stowage on port side and bed table. Fully equipped day and guest head, separate shower stall with handheld shower and bracket. Comfort seat with wood cover.
A1: VIP cabin with double berth, wardrobe and sideboards with stowage, mirror and two bedside tables. 3 skylights, one openable, direct access to separated day head
Length Overall (Lmax)
16.13 m | 52.11 ft
Length Overall (Lmax) - ext. platf.
|
ength of Hull (LH)
14.64 m | 48.0 ft
Beam (BH)
4.56 m | 14.11 ft
Draught (Tmax)
1.12 m | 3.8 ft
Air height
6.05 m | 19.10 ft
Fuel capacity
1560 l | 343 UK gal
Water capacity
766 l | 168 UK gal
Displacement
20.32 t | 20.00 UK t
CE Category
B
Max. persons
12
Engine Standard
1100 hp | 809 kw
Speed Standard
55 km/h | 30 knots
Engine Option
1200 hp | 882 kw
Speed option
61 km/h | 33 knots
